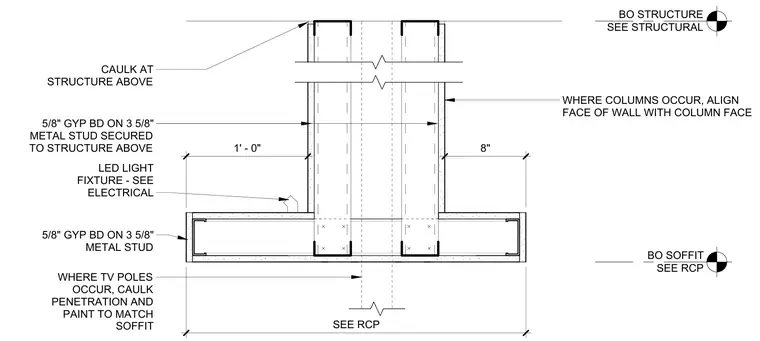

A drop soffit assembly is constructed using 5/8-inch gypsum board on 3-5/8-inch metal studs secured to the overhead structure. The vertical framing extends down to form a dropped horizontal soffit plane, with caulk applied at the structural interface. Where columns occur, the face of the wall aligns with the column face. LED light fixtures are integrated into the soffit per electrical drawings, and penetrations for TV poles are caulked and painted to match the surrounding soffit finish.
8" SEE STRUCTURAL BO STRUCTURE SEE RCP BO SOFFIT 5/8" GYP BD ON 3 5/8" METAL STUD SECURED TO STRUCTURE ABOVE 5/8" GYP BD ON 3 5/8" METAL STUD SEE RCP 1' - 0" CAULK AT STRUCTURE ABOVE WHERE TV POLES OCCUR, CAULK PENETRATION AND PAINT TO MATCH SOFFIT WHERE COLUMNS OCCUR, ALIGN FACE OF WALL WITH COLUMN FACE LED LIGHT FIXTURE - SEE ELECTRICAL
