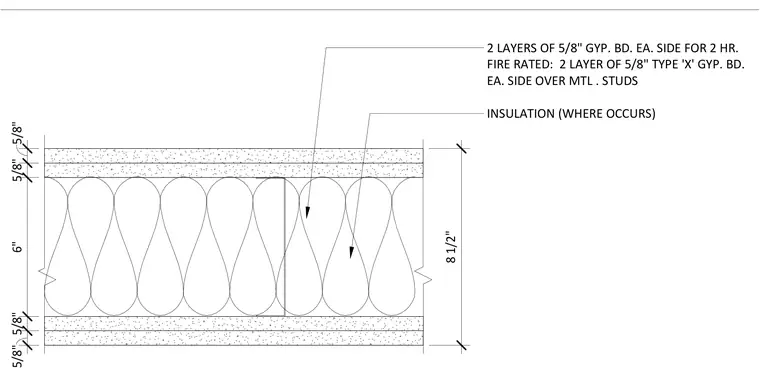

This wall assembly consists of metal studs framing a cavity that accommodates insulation where specified. Each side of the partition is finished with two layers of five-eighths-inch Type X gypsum board to achieve a two-hour fire rating. The overall wall thickness measures eight and one-half inches, utilizing six-inch metal studs with five-eighths-inch thick gypsum layers on both faces.
INSULATION (WHERE OCCURS) 2 LAYERS OF 5/8" GYP. BD. EA. SIDE FOR 2 HR. FIRE RATED: 2 LAYER OF 5/8" TYPE 'X' GYP. BD. EA. SIDE OVER MTL . STUDS 5/8" 5/8" 6" 5/8" 5/8" 8 1/2"
