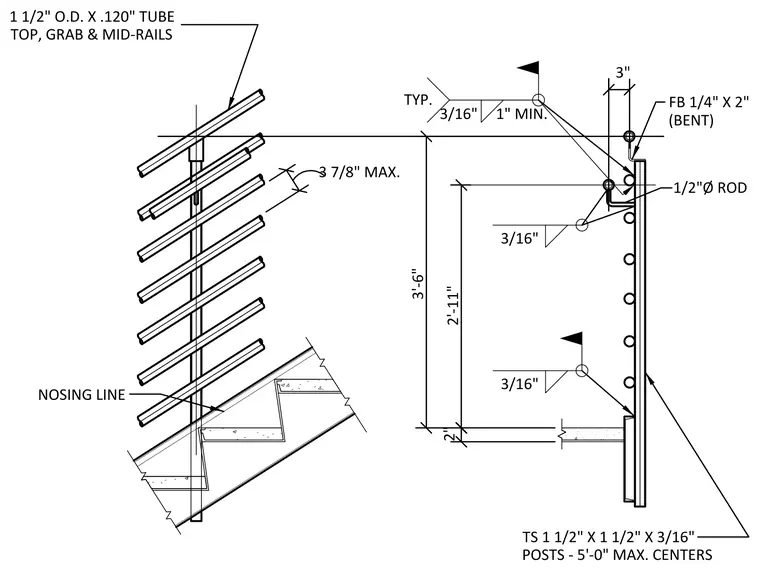

The stair guard assembly utilizes 1 1/2-inch by 1 1/2-inch by 3/16-inch hollow structural section posts spaced at a maximum of 5 feet on center. The top, grab, and mid-rails consist of 1 1/2-inch outer diameter by .120-inch wall steel tubing. Infill is provided by 1/2-inch diameter round bars spaced at a maximum of 3 7/8 inches clear. A bent 1/4-inch by 2-inch flat bar is incorporated into the assembly. Welds are specified as 3/16-inch typical throughout the connection details.
TS 1 1/2" X 1 1/2" X 3/16" POSTS ‐ 5'‐0" MAX. CENTERS 1 1/2" O.D. X .120" TUBE TOP, GRAB & MID‐RAILS NOSING LINE 3'‐6" 2" 1" MIN. 3/16" 3 7/8" MAX. TYP. FB 1/4" X 2" (BENT) 3" 2'‐11" 3/16" 1/2"Ø ROD 3/16"
