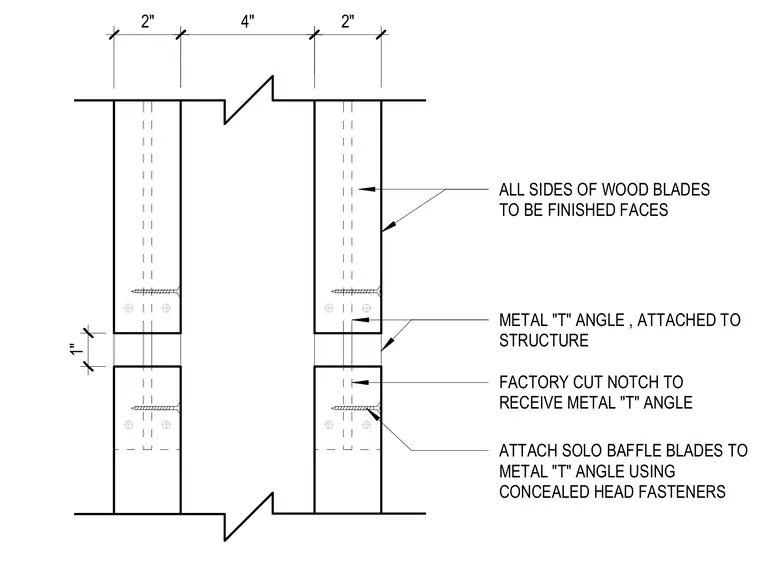

Solo wood baffle blades feature factory-cut notches designed to receive a structural metal tee angle. The blades are secured to the metal tee using concealed head fasteners. All sides of the wood blades are finished faces. The assembly maintains specified dimensional clearances between blade segments.
4" 2" 2" 1" ATTACH SOLO BAFFLE BLADES TO METAL "T" ANGLE USING CONCEALED HEAD FASTENERS FACTORY CUT NOTCH TO RECEIVE METAL "T" ANGLE METAL "T" ANGLE , ATTACHED TO STRUCTURE ALL SIDES OF WOOD BLADES TO BE FINISHED FACES
