The tactile exit sign features sans-serif uppercase characters raised one-thirty-second of an inch alongside corresponding Grade 2 Braille per local accessibility standards. Characters and background maintain a non-glare finish with contrasting colors distinctly different from the wall surface. The standard color scheme specifies white text on a blue background unless approved otherwise. Vertical spacing dimensions require a minimum three-eighths inch clearance around the Braille text and a five-eighths inch minimum to two-inch maximum height for the main exit lettering.

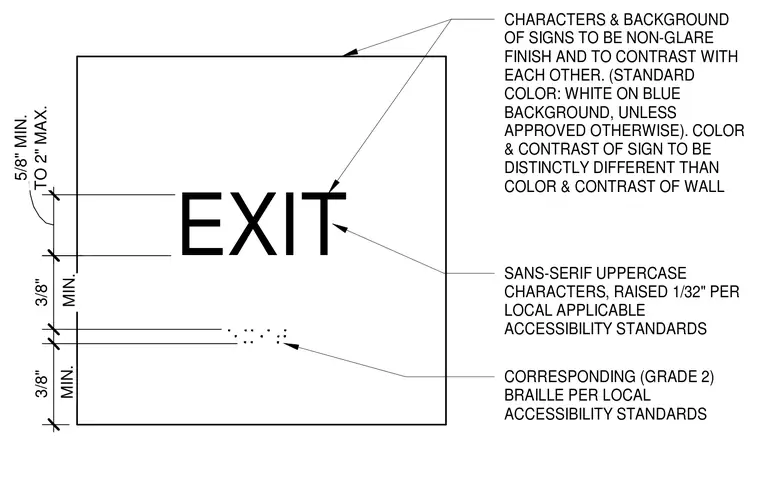

EXIT CORRESPONDING (GRADE 2) BRAILLE PER LOCAL ACCESSIBILITY STANDARDS SANS-SERIF UPPERCASE CHARACTERS, RAISED 1/32" PER LOCAL APPLICABLE ACCESSIBILITY STANDARDS CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. (STANDARD COLOR: WHITE ON BLUE BACKGROUND, UNLESS APPROVED OTHERWISE). COLOR & CONTRAST OF SIGN TO BE DISTINCTLY DIFFERENT THAN COLOR & CONTRAST OF WALL MIN. 3/8 " MIN. 3/8" TO 2" MAX. 5/8" MIN.
