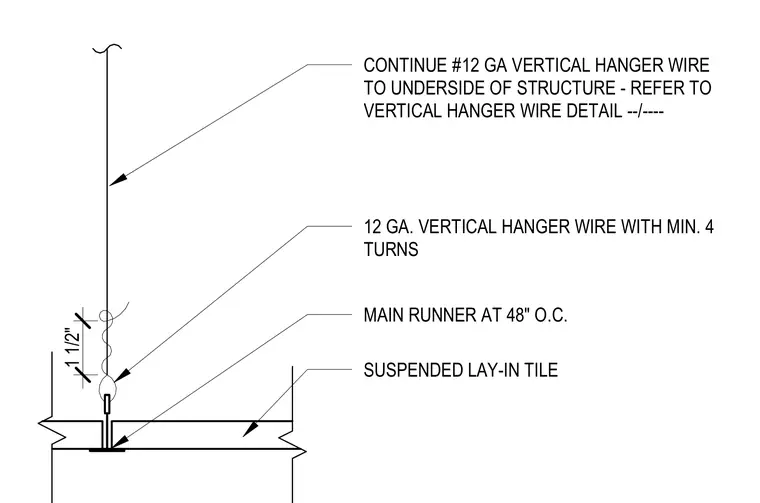

The suspended lay-in tile system utilizes main runners spaced at forty-eight inches on center. Each main runner is supported by a number twelve gauge vertical hanger wire extending to the underside of the structure above. The wire connection requires a minimum of four turns at the termination point. A vertical clearance of one and one-half inches is maintained at the runner connection.
MAIN RUNNER AT 48" O.C. SUSPENDED LAY-IN TILE CONTINUE #12 GA VERTICAL HANGER WIRE TO UNDERSIDE OF STRUCTURE - REFER TO VERTICAL HANGER WIRE DETAIL --/---- 12 GA. VERTICAL HANGER WIRE WITH MIN. 4 TURNS 1 1/2"
