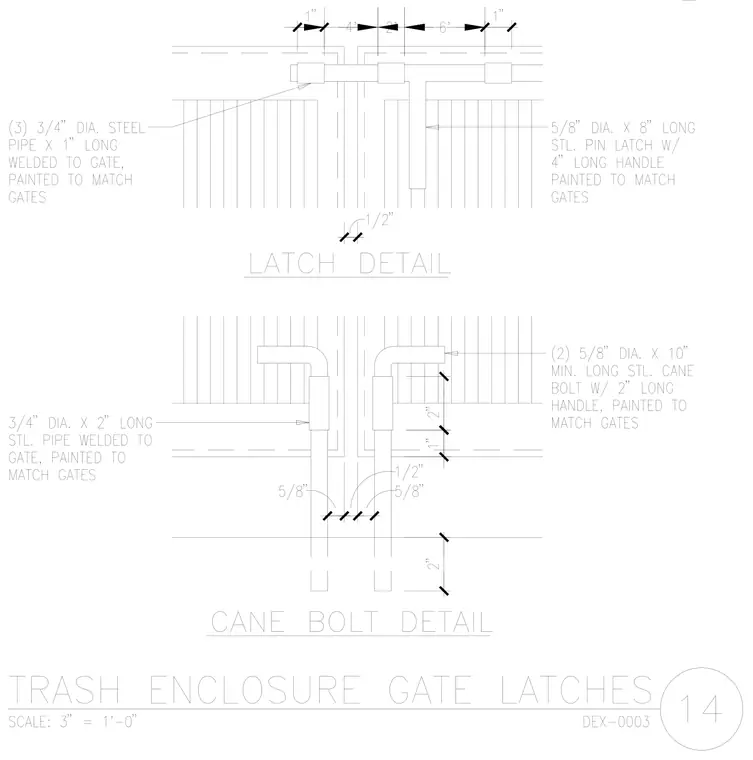

The upper latch detail features a five-eighths-inch diameter by eight-inch long steel pin latch with a four-inch long handle, paired with three three-quarter-inch diameter by one-inch long steel pipes welded to the gate and painted to match. The lower cane bolt detail incorporates two five-eighths-inch diameter by ten-inch minimum long steel cane bolts with two-inch long handles, secured by three-quarter-inch diameter by two-inch long steel pipes welded to the gate and painted to match.
