A honeycomb panel with Jerusalem limestone stone veneer is fastened to a cold-formed metal stud partition wall. The assembly features a layer of five-eighths inch gypsum wallboard applied to the interior face of the metal framing. Fastening clips attach to the back of the honeycomb panel as required to secure the cladding. The wall framing is constructed as scheduled on the architectural drawings.

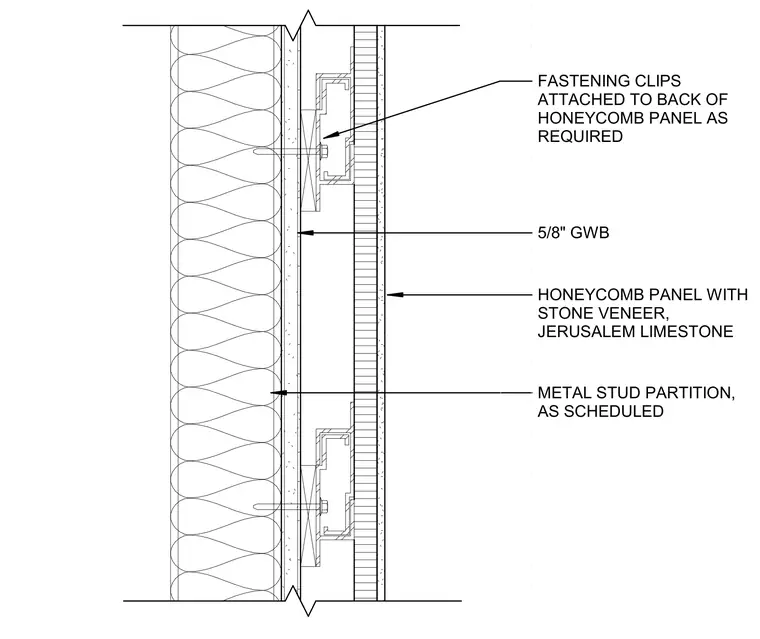

METAL STUD PARTITION, AS SCHEDULED HONEYCOMB PANEL WITH STONE VENEER, JERUSALEM LIMESTONE FASTENING CLIPS ATTACHED TO BACK OF HONEYCOMB PANEL AS REQUIRED 5/8" GWB
