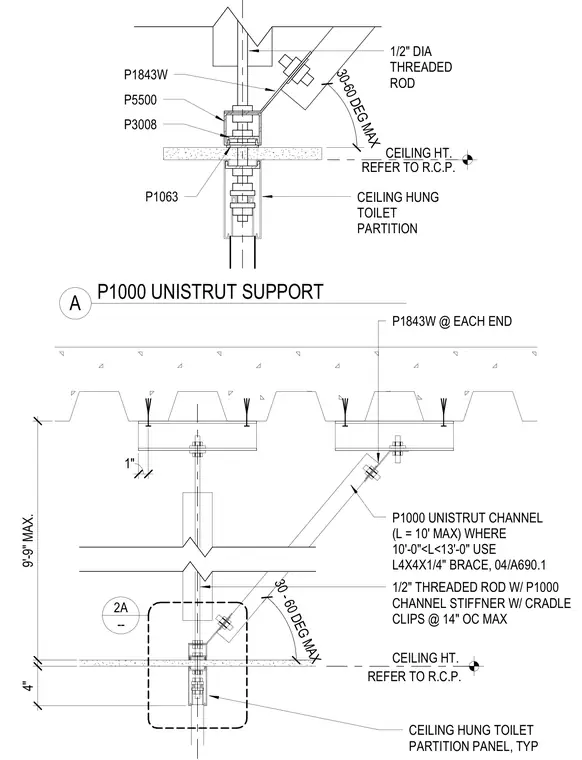

Overhead support and diagonal bracing assembly for ceiling-hung toilet partitions suspended from a metal deck and concrete structural slab. A half-inch diameter threaded rod supports the primary P1000 Unistrut channel assembly, which anchors the top of the partition panel. Diagonal bracing is provided by P1843W channels at each end, or an L4x4x1/4-inch angle brace where lengths exceed ten feet. Cradle clips are spaced at fourteen inches on center maximum along the threaded rod with a P1000 channel stiffener. The lateral brace angle is maintained between thirty and sixty degrees maximum relative to the vertical support.
P1843W @ EACH END P1000 UNISTRUT CHANNEL (L = 10' MAX) WHERE 10'-0"<L<13'-0" USE L4X4X1/4" BRACE, 04/A690.1 1/2" THREADED ROD W/ P1000 CHANNEL STIFFNER W/ CRADLE CLIPS @ 14" OC MAX CEILING HUNG TOILET PARTITION PANEL, TYP 1" CEILING HT. REFER TO R.C.P. 9'-9" MAX. 4" 30 - 60 DEG MAX 1/2" DIA THREADED ROD P5500 P3008 P1063 P1843W CEILING HUNG TOILET PARTITION 30-60 DEG MAX CEILING HT. REFER TO R.C.P. P1000 UNISTRUT SUPPORT A 2A --
