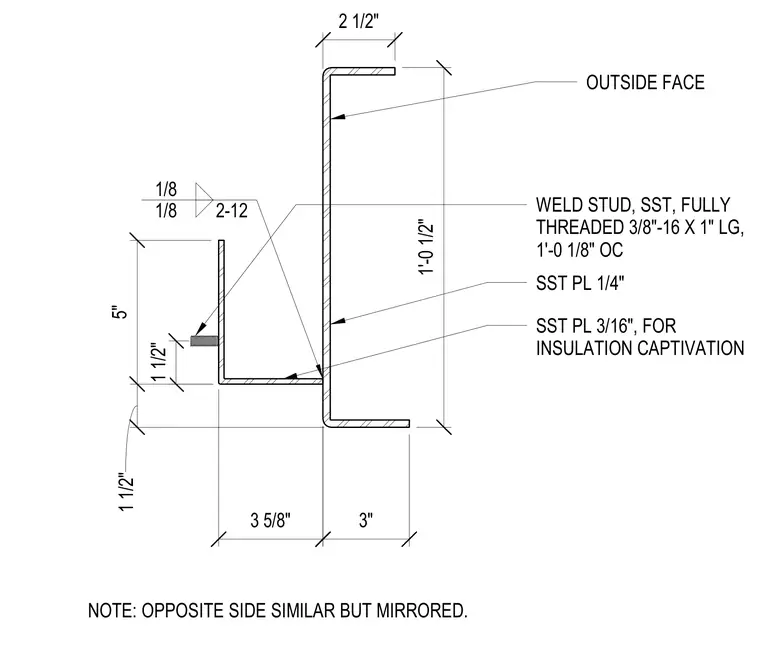

A 1/4-inch stainless steel plate connects to a 3/16-inch stainless steel plate using a 1/8-inch fillet weld. Fully threaded 3/8-inch by 1-inch long stainless steel weld studs are spaced at 1 foot and 1/8 inch on center to provide insulation captivation. The opposite side is similar but mirrored. Key dimensions include a 1 foot and 1/2 inch main height, a 5-inch flange height, and 3-5/8 inch and 3-inch horizontal dimensions.
1'-0 1/2" 3 5/8" 2 1/2" 3" 5" 1 1/2" 1/8 2-12 1/8 OUTSIDE FACE NOTE: OPPOSITE SIDE SIMILAR BUT MIRRORED. SST PL 1/4" SST PL 3/16", FOR INSULATION CAPTIVATION 1 1/2" WELD STUD, SST, FULLY THREADED 3/8"-16 X 1" LG, 1'-0 1/8" OC
