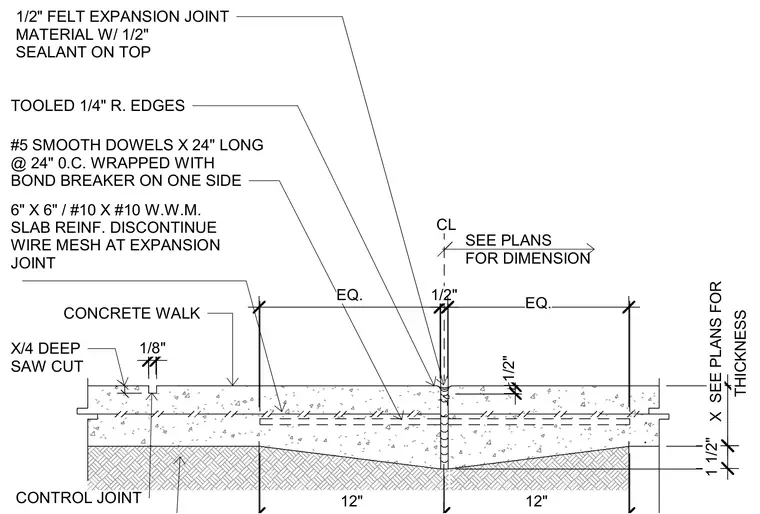

A concrete sidewalk rests on compacted subgrade with an expansion and control joint assembly. A half-inch felt expansion joint material fills the joint gap, topped with a half-inch of sealant and tooled quarter-inch rounded edges. Number five smooth dowels, twenty-four inches long, span the joint at twenty-four inches on center with a bond breaker wrapped on one side. Six-by-six number ten welded wire mesh reinforces the concrete slab and is discontinued at the expansion joint. A partial depth saw cut creates a control joint spaced per plan dimensions, with the concrete thickness and subgrade details indicated.
CONTROL JOINT CL SEE PLANS FOR DIMENSION 1/2" FELT EXPANSION JOINT MATERIAL W/ 1/2" SEALANT ON TOP TOOLED 1/4" R. EDGES #5 SMOOTH DOWELS X 24" LONG @ 24" 0.C. WRAPPED WITH BOND BREAKER ON ONE SIDE 6" X 6" / #10 X #10 W.W.M. SLAB REINF. DISCONTINUE WIRE MESH AT EXPANSION JOINT CONCRETE WALK X/4 DEEP SAW CUT 1 1/2" THICKNESS X SEE PLANS FOR 12" 12" 1/8" EQ. 1/2" EQ. 1/2"
