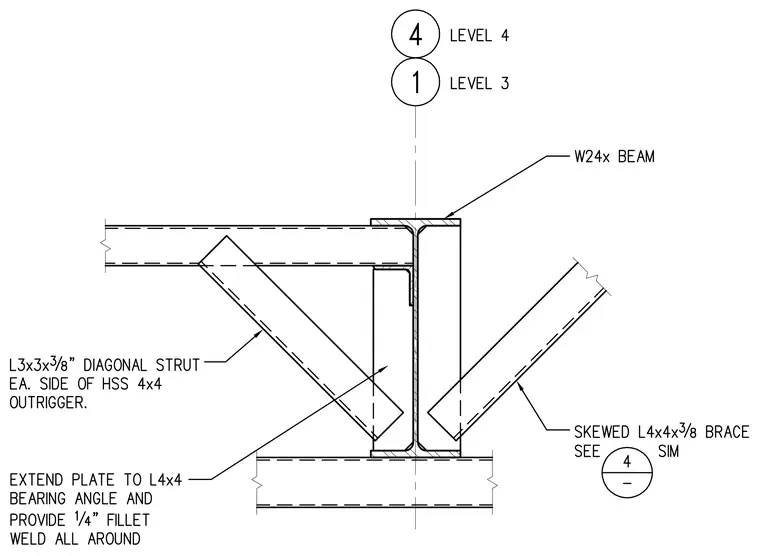

A W24x beam connects to diagonal structural steel framing elements including L3x3x3/8 diagonal struts on each side of an HSS 4x4 outrigger and a skewed L4x4x3/8 brace. A connecting plate extends to an L4x4 bearing angle with a quarter-inch fillet weld all around.
