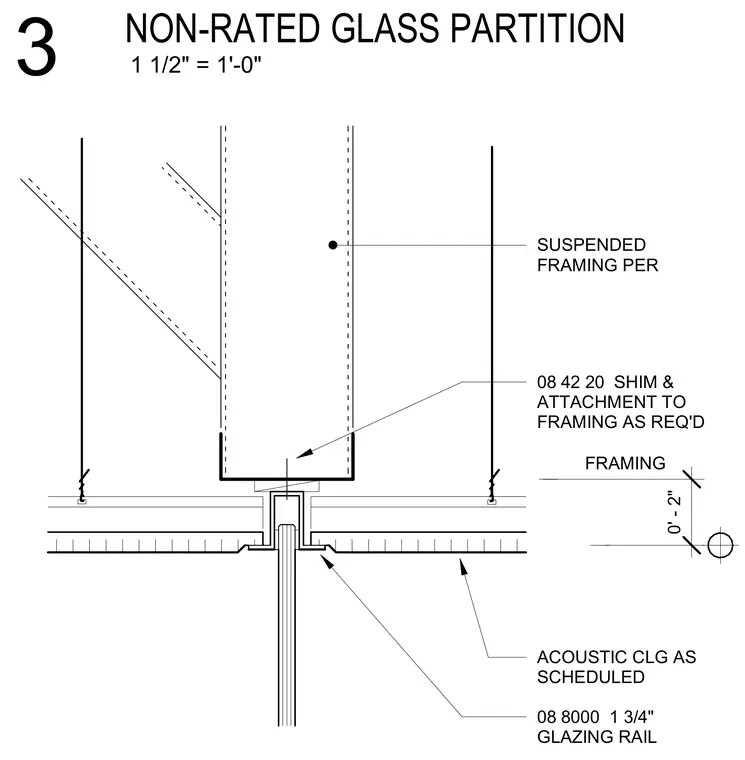

An all-glass acoustic ceiling head detail connects a non-rated glass partition to overhead suspended framing. A 1-3/4 inch glazing rail receives the top of the glass pane and attaches to the overhead framing using required shims and fasteners. Suspended framing aligns with the acoustic ceiling system as scheduled, maintaining a zero-foot two-inch clearance dimension.
08 8000 1 3/4" GLAZING RAIL ACOUSTIC CLG AS SCHEDULED SUSPENDED FRAMING PER 0' - 2" FRAMING 08 42 20 SHIM & ATTACHMENT TO FRAMING AS REQ'D 1 1/2" = 1'-0" 3 NON-RATED GLASS PARTITION
