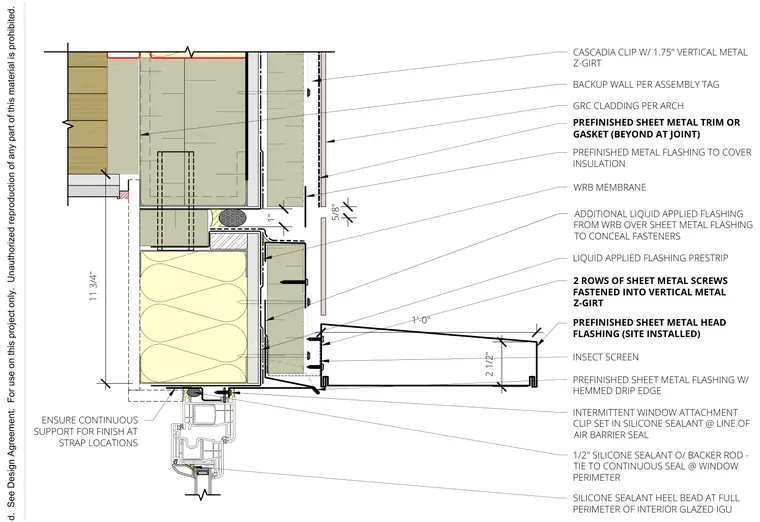

This window head detail features an exterior sunshade and glass fiber reinforced concrete cladding mounted to a backup wall via Cascadia clips and vertical metal Z-girts. A prefinished sheet metal head flashing with a hemmed drip edge and insect screen integrates with a liquid-applied flashing prestrip over the water-resistive barrier membrane. Two rows of sheet metal screws fasten into the vertical metal Z-girt, concealed by additional liquid-applied flashing extending from the water-resistive barrier. The glazed insulated glass unit secures with intermittent window attachment clips set in silicone sealant at the air barrier seal line, complemented by a half-inch silicone sealant joint over a backer rod and an interior heel bead. Prefinished metal flashing covers the insulation, and continuous support is maintained for the finish at strap locations.
8001 8095 7134 8727 Ix=2.20 8727 Ix=2.20 2 1/2" 1'-0" 1" LIQUID APPLIED FLASHING PRESTRIP PREFINISHED SHEET METAL HEAD FLASHING (SITE INSTALLED) 1/2" SILICONE SEALANT O/ BACKER ROD - TIE TO CONTINUOUS SEAL @ WINDOW PERIMETER WRB MEMBRANE CASCADIA CLIP W/ 1.75" VERTICAL METAL Z-GIRT GRC CLADDING PER ARCH PREFINISHED SHEET METAL TRIM OR GASKET (BEYOND AT JOINT) BACKUP WALL PER ASSEMBLY TAG 2 ROWS OF SHEET METAL SCREWS FASTENED INTO VERTICAL METAL Z-GIRT ADDITIONAL LIQUID APPLIED FLASHING FROM WRB OVER SHEET METAL FLASHING TO CONCEAL FASTENERS PREFINISHED SHEET METAL FLASHING W/ HEMMED DRIP EDGE INSECT SCREEN SILICONE SEALANT HEEL BEAD AT FULL PERIMETER OF INTERIOR GLAZED IGU INTERMITTENT WINDOW ATTACHMENT CLIP SET IN SILICONE SEALANT @ LINE OF AIR BARRIER SEAL 5/8" PREFINISHED METAL FLASHING TO COVER INSULATION 11 3/4" ENSURE CONTINUOUS SUPPORT FOR FINISH AT STRAP LOCATIONS
