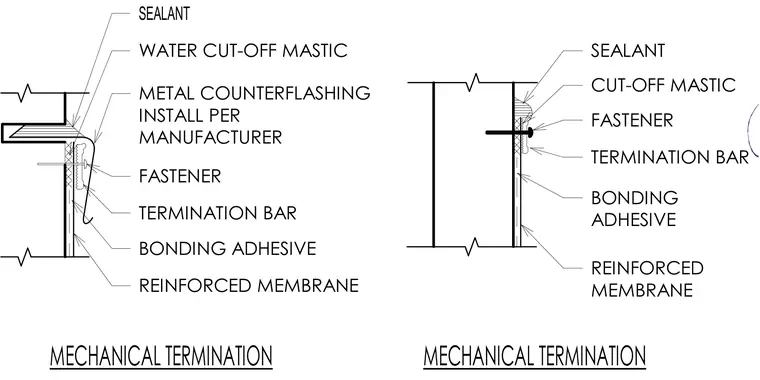

A reinforced waterproof membrane is adhered to the substrate using bonding adhesive and secured along its upper edge with a metal termination bar and mechanical fasteners. Water cut-off mastic is applied beneath the termination bar, and a surface bead of sealant seals the joint against moisture infiltration. Metal counterflashing is installed over the termination per the manufacturer instructions.
SEALANT WATER CUT-OFF MASTIC METAL COUNTERFLASHING INSTALL PER MANUFACTURER FASTENER TERMINATION BAR BONDING ADHESIVE REINFORCED MEMBRANE SEALANT CUT-OFF MASTIC FASTENER TERMINATION BAR BONDING ADHESIVE REINFORCED MEMBRANE MECHANICAL TERMINATION MECHANICAL TERMINATION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
