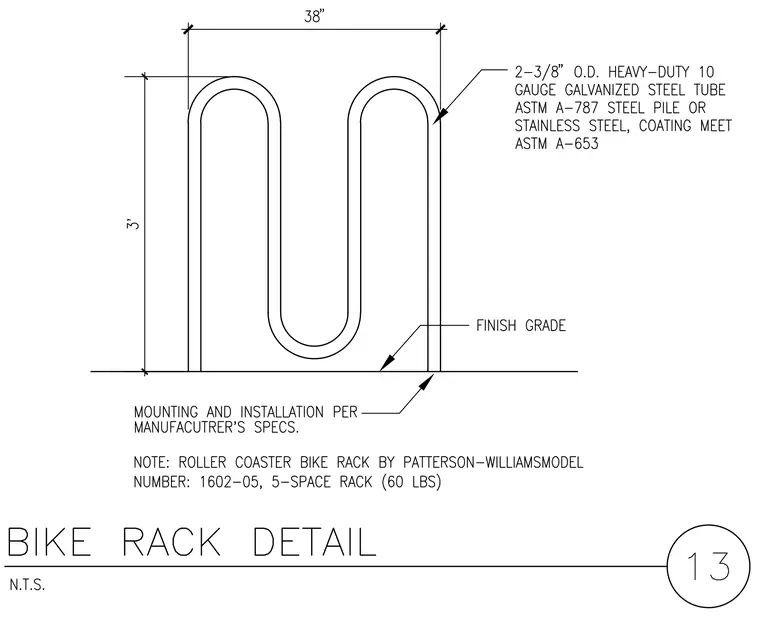

This elevation detail shows a five-space roller coaster bike rack measuring thirty-eight inches wide by three feet high. The assembly is constructed from two and three-eighths inch outside diameter heavy-duty ten gauge galvanized steel tubing conforming to ASTM A-787 or stainless steel with a coating meeting ASTM A-653. Mounting and installation follow the manufacturer's specifications at finish grade. The specified model is the Patterson-Williams Roller Coaster bike rack, model number 1602-05, weighing sixty pounds.
