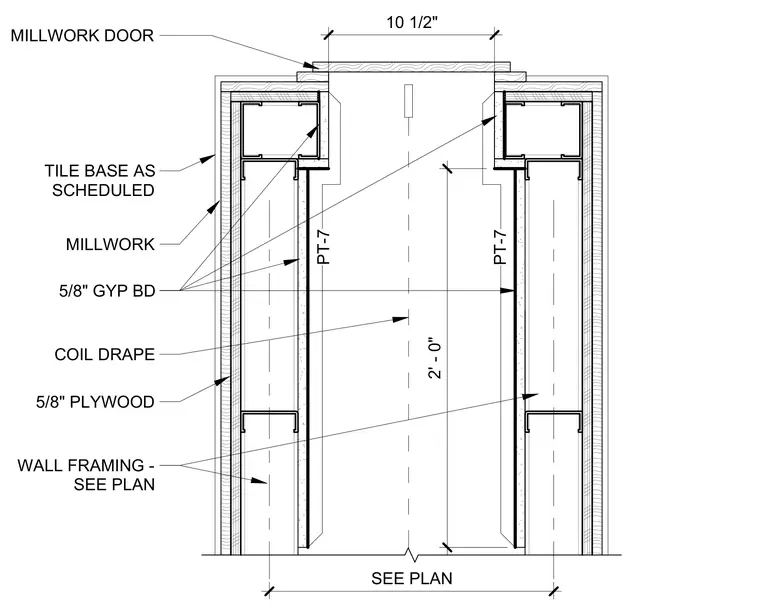

This interior millwork detail shows a framed wall cavity containing a coil drape with a 2 foot opening, enclosed by a millwork door at the top. The wall assembly is constructed with wall framing per plan, faced with five-eighths inch plywood and five-eighths inch gypsum board. The exterior finish incorporates a tile base as scheduled and paint finish designated as PT-7.
10 1/2" PT-7 MILLWORK DOOR 2' - 0" SEE PLAN MILLWORK TILE BASE AS SCHEDULED 5/8" GYP BD COIL DRAPE 5/8" PLYWOOD WALL FRAMING - SEE PLAN PT-7
