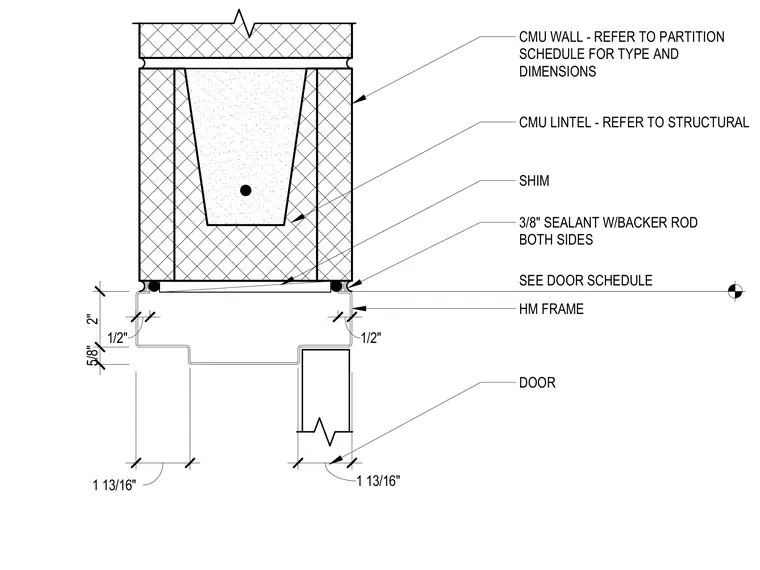

A hollow metal door frame sits beneath a CMU wall and reinforced CMU lintel. Shims level the frame head in the rough opening. Three-eighths inch sealant with a backer rod is applied to both sides of the frame head. The hollow metal frame profile dimensions are indicated with specific clearances.
CMU WALL - REFER TO PARTITION SCHEDULE FOR TYPE AND DIMENSIONS CMU LINTEL - REFER TO STRUCTURAL SHIM 3/8" SEALANT W/BACKER ROD BOTH SIDES SEE DOOR SCHEDULE HM FRAME DOOR 5/8" 2" 1/2" 1/2" 1 13/16" 1 13/16"
