Architectural · A-FJKYW

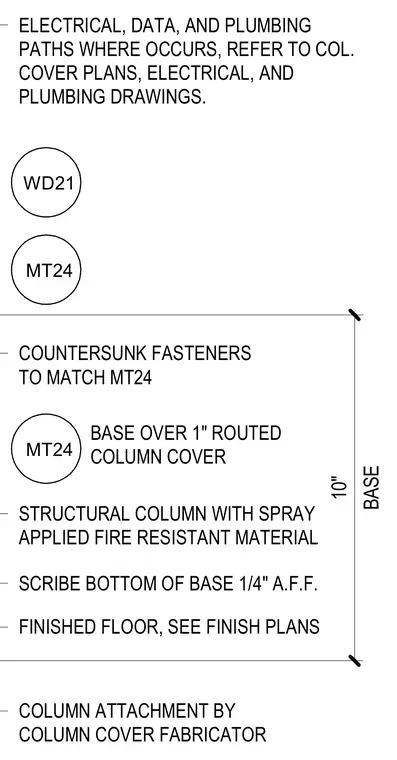

Column Cover Base Section Detail

Elements

About this detail

A ten-inch high base fits over a one-inch routed column cover secured with countersunk fasteners matching the metal finish. The assembly wraps a structural column finished with spray-applied fire-resistant material. The bottom of the base is scribed one-quarter inch above the finished floor level. Electrical, data, and plumbing paths are coordinated per column cover plans, electrical, and plumbing drawings, with the column attachment detailed by the column cover fabricator.
