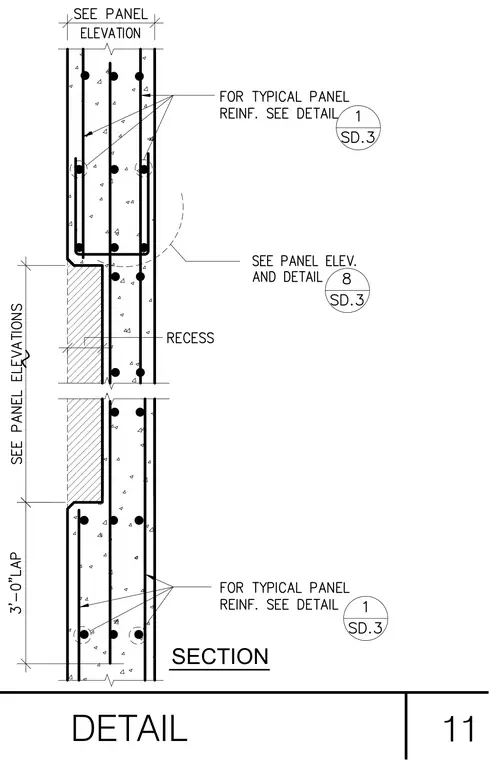

A precast concrete wall panel vertical section shows continuous vertical and horizontal reinforcing bars with a three-foot lap splice. A panel recess is indicated along the face, with referencing callouts directing to panel elevations and typical reinforcement details on sheet SD.3.
