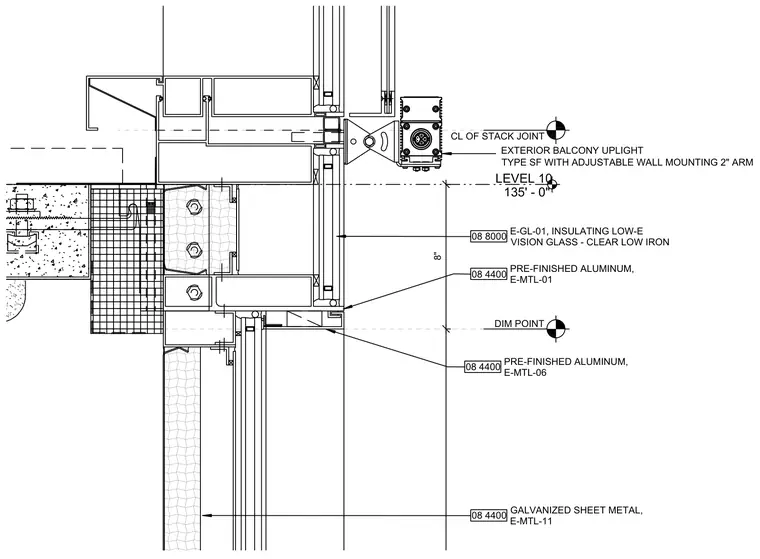

A curtain wall head assembly adjacent to a terrace entry door at Level 10 incorporates an exterior balcony uplight fixture mounted on a two-inch adjustable wall arm aligned with the stack joint. The glazing system features insulating low-E clear low iron vision glass set within pre-finished aluminum framing. Associated flashing and trim elements include pre-finished aluminum and galvanized sheet metal components.
CL OF STACK JOINT EXTERIOR BALCONY UPLIGHT TYPE SF WITH ADJUSTABLE WALL MOUNTING 2" ARM LEVEL 10 135' - 0" 08 8000 08 4400 E-GL-01, INSULATING LOW-E VISION GLASS - CLEAR LOW IRON PRE-FINISHED ALUMINUM, E-MTL-01 DIM POINT 08 4400 PRE-FINISHED ALUMINUM, E-MTL-06 08 4400 GALVANIZED SHEET METAL, E-MTL-11 8"
