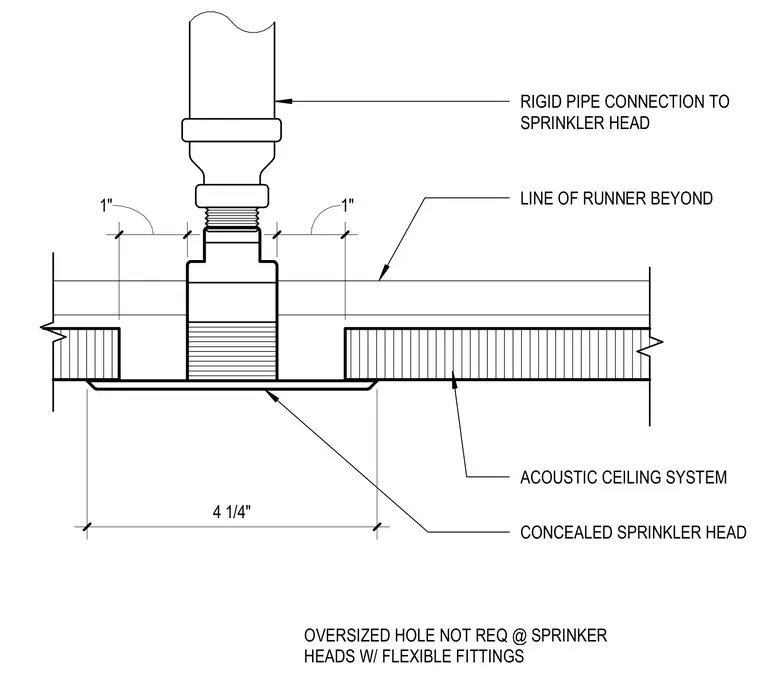

A four-and-one-quarter-inch concealed sprinkler head is integrated into an acoustic ceiling system with one-inch clearances indicated from the runner beyond. A rigid pipe connection feeds the sprinkler head from above. An oversized hole is noted as not required at sprinkler heads with flexible fittings.
4 1/4" CONCEALED SPRINKLER HEAD ACOUSTIC CEILING SYSTEM 1" 1" LINE OF RUNNER BEYOND RIGID PIPE CONNECTION TO SPRINKLER HEAD OVERSIZED HOLE NOT REQ @ SPRINKER HEADS W/ FLEXIBLE FITTINGS
