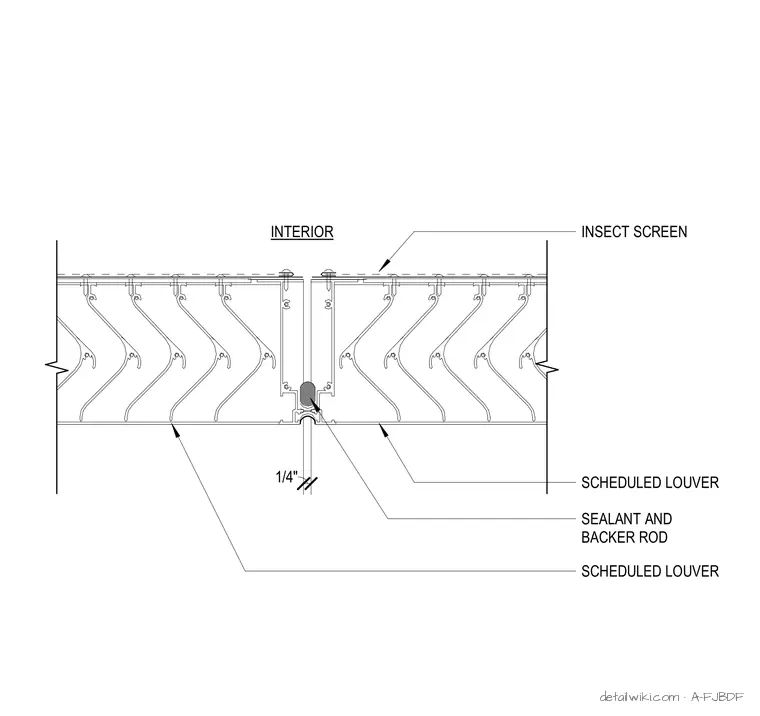

Two aluminum louver sections meet at a vertical joint with a one-quarter inch gap. A backer rod and sealant fill the joint. An interior insect screen attaches to the interior face of the louver frames.
