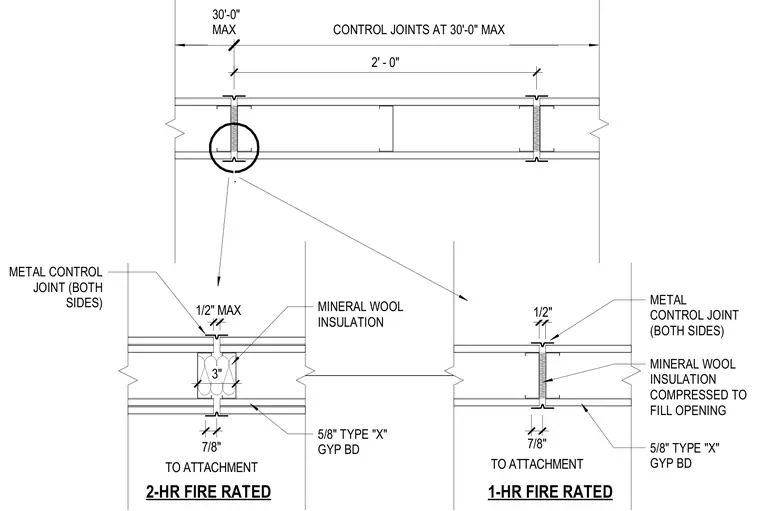

Metal control joints are installed on both sides of the gypsum board partition at a maximum spacing of 30 feet, with attachments located up to 7/8 inch from the edge. The 1-hour fire-rated assembly utilizes compressed mineral wool insulation to fill the opening, maintaining a maximum joint width of 1/2 inch. The 2-hour fire-rated assembly incorporates mineral wool insulation with a 3-inch attachment spacing and a maximum 1/2-inch opening. Both assemblies face each other across the two-foot partition segment, surfaced with 5/8-inch Type X gypsum board on metal framing.
3" TO ATTACHMENT 7/8" 1/2" MAX MINERAL WOOL INSULATION 5/8" TYPE "X" GYP BD METAL CONTROL JOINT (BOTH SIDES) 2-HR FIRE RATED 1/2" TO ATTACHMENT 7/8" 1-HR FIRE RATED METAL CONTROL JOINT (BOTH SIDES) 5/8" TYPE "X" GYP BD MINERAL WOOL INSULATION COMPRESSED TO FILL OPENING 2' - 0" . 30'-0" MAX CONTROL JOINTS AT 30'-0" MAX
