Architectural · A-FHM3A

Door Threshold at Carpet and Concrete Floor Transition

Materials

Elements

About this detail

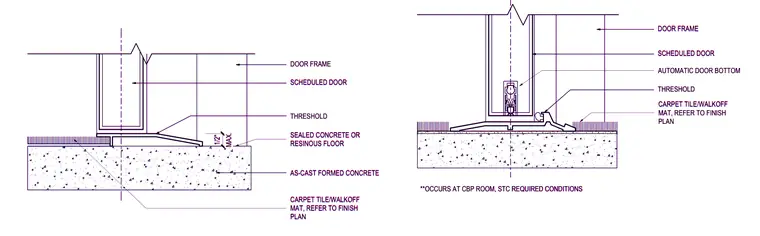

This threshold assembly coordinates the transition between a scheduled door frame with an automatic door bottom and adjacent floor finishes over an as-cast formed concrete slab. The threshold piece bridges between carpet tile or walk-off mat finishes on either side, maintaining a maximum one-half inch clearance. Sealed concrete or resinous flooring conditions apply where indicated, and specific arrangements occur at CBP rooms requiring sound transmission class ratings.
