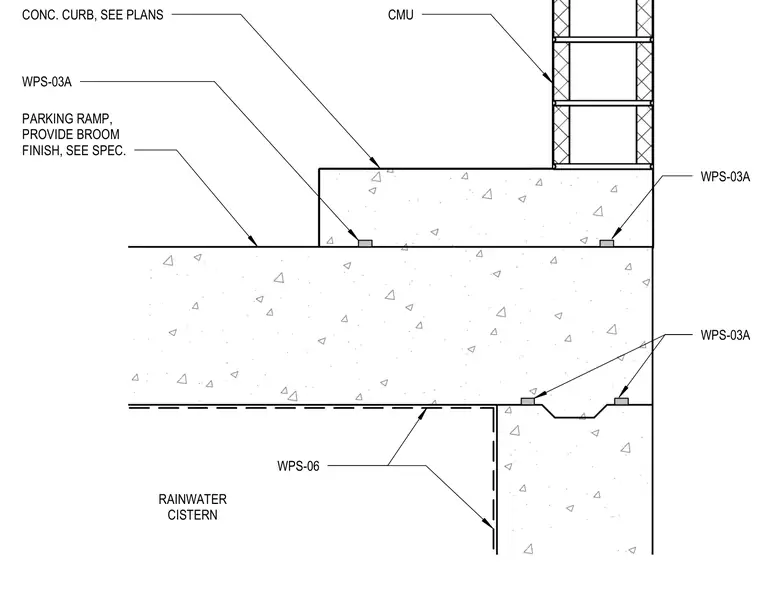

A concrete parking ramp features a broom finish specified per the project specifications and rests above a rainwater cistern. A concrete curb is positioned on the slab, detailed per the architectural plans. Concrete masonry unit walls extend upward from the base structure. Waterproofing membranes designated as WPS-03A and WPS-06 are applied at the junctions and subterranean surfaces.
RAINWATER CISTERN PARKING RAMP, PROVIDE BROOM FINISH, SEE SPEC. WPS-06 CONC. CURB, SEE PLANS CMU WPS-03A WPS-03A WPS-03A
