Curtain Wall Stack Joint at Garage Floor Slab

Materials

Elements

About this detail

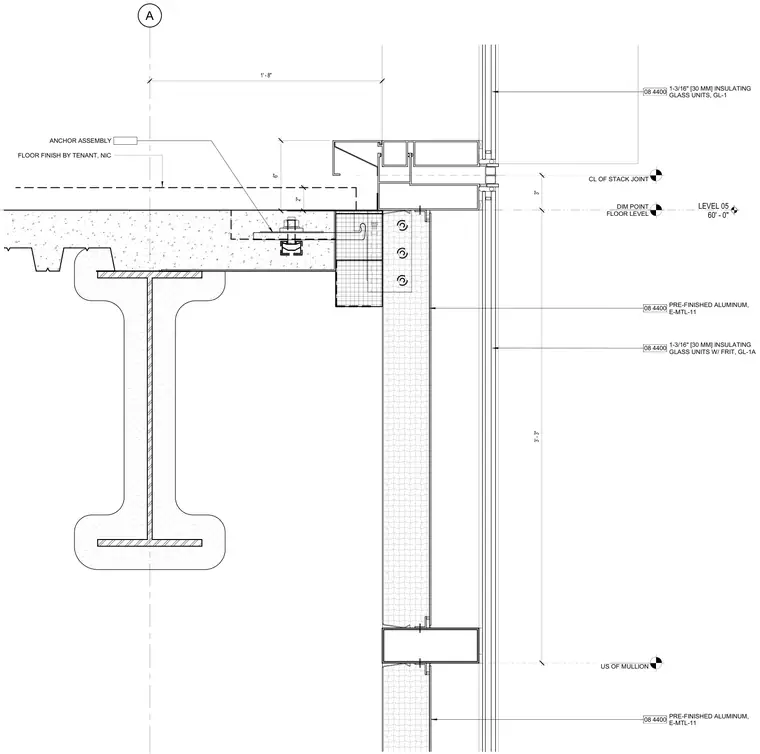

A curtain wall stack joint connects at a concrete floor slab supported by a wide-flange structural steel beam. The assembly features pre-finished aluminum mullions and 1-3/16-inch insulating glass units, including units with frit. An anchor assembly secures the framing to the slab, positioned two inches clear of the stack joint dimension point at Level 05. Tenant floor finish is noted as not in contract.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
