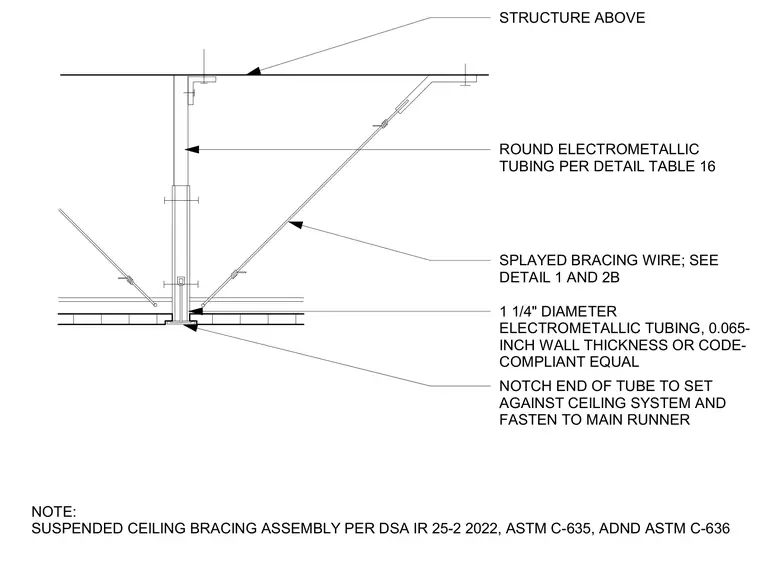

Suspended ceiling bracing assembly consisting of a 1 1/4" diameter electrical metallic tubing compression strut with a 0.065-inch wall thickness positioned vertically between the structure above and the ceiling grid. The notched end of the tube sets against the ceiling system and fastens directly to the main runner. Splayed bracing wires provide lateral stabilization per DSA IR 25-2 2022, ASTM C-635, and ASTM C-636.
ROUND ELECTROMETALLIC TUBING PER DETAIL TABLE 16 SPLAYED BRACING WIRE; SEE DETAIL 1 AND 2B 1 1/4" DIAMETER ELECTROMETALLIC TUBING, 0.065- INCH WALL THICKNESS OR CODE- COMPLIANT EQUAL NOTCH END OF TUBE TO SET AGAINST CEILING SYSTEM AND FASTEN TO MAIN RUNNER NOTE: SUSPENDED CEILING BRACING ASSEMBLY PER DSA IR 25-2 2022, ASTM C-635, ADND ASTM C-636 STRUCTURE ABOVE
