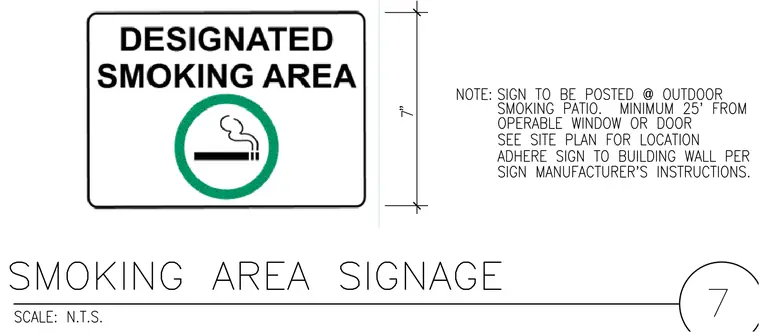

A designated smoking area sign is posted at the outdoor smoking patio, positioned a minimum of twenty-five feet from any operable window or door. The sign measures seven inches in height and is adhered to the building wall per the sign manufacturer's instructions. Exact placement is determined per the site plan.
