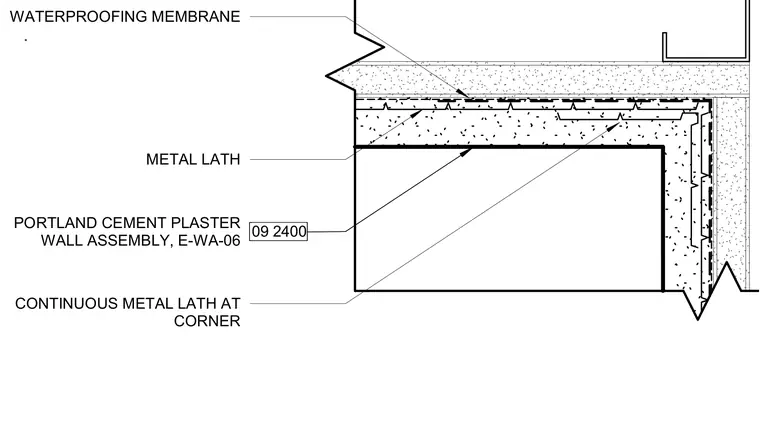

An internal plaster corner plan detail showing a Portland cement plaster wall assembly with a continuous metal lath at the corner. A waterproofing membrane is installed beneath the plaster layer for weather protection. Metal lath is applied continuously across the internal corner intersection.
CONTINUOUS METAL LATH AT CORNER METAL LATH 09 2400 PORTLAND CEMENT PLASTER WALL ASSEMBLY, E-WA-06 WATERPROOFING MEMBRANE
