An exterior steel stair assembly spans from a concrete foundation up to Level 1 at 100'-0", utilizing channel stringers and a landing of MC 12"x10.6 steel channels with a galvanized finish. Treads and landings consist of 1 1/4" by 3/16" flat bar grating with a galvanized finish, supported by a 2-1/2" diameter standard pipe column also finished in galvanized coating. The guardrail and handrail system is constructed from 1 1/4" standard pipe with rounded edges and smoothed surfaces, featuring 1" diameter horizontal balusters spaced to prevent the passage of a 4" sphere. The stair connects down to a concrete slab on grade and a continuous concrete footing with top of footing at 94'-6".

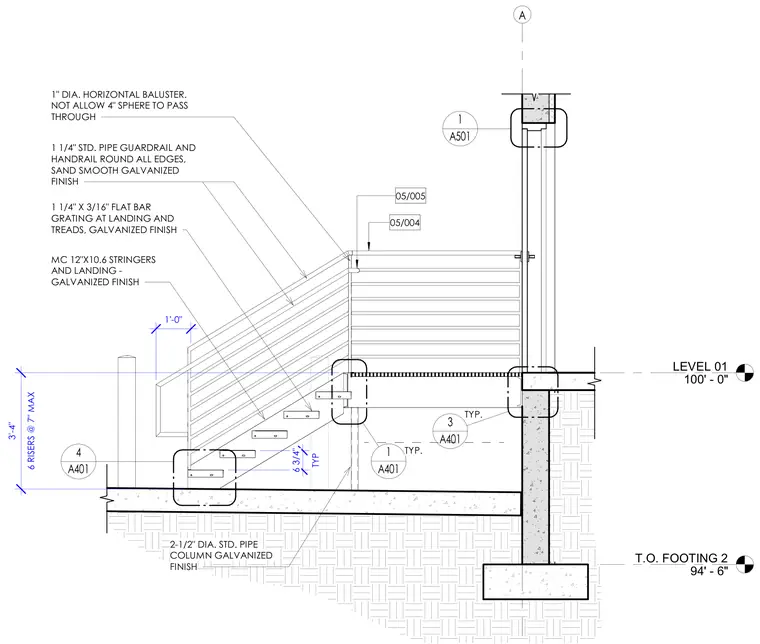

LEVEL 01 100' - 0" A T.O. FOOTING 2 94' - 6" 1'-0" 05/004 05/005 A401 1 A401 3 TYP. TYP. A401 4 2-1/2" DIA. STD. PIPE COLUMN GALVANIZED FINISH MC 12"X10.6 STRINGERS AND LANDING - GALVANIZED FINISH 1 1/4" X 3/16" FLAT BAR GRATING AT LANDING AND TREADS, GALVANIZED FINISH 1 1/4" STD. PIPE GUARDRAIL AND HANDRAIL ROUND ALL EDGES, SAND SMOOTH GALVANIZED FINISH 1" DIA. HORIZONTAL BALUSTER. NOT ALLOW 4" SPHERE TO PASS THROUGH TYP 6 3/4" 6 RISERS @ 7" MAX 3'-4" A501 1
