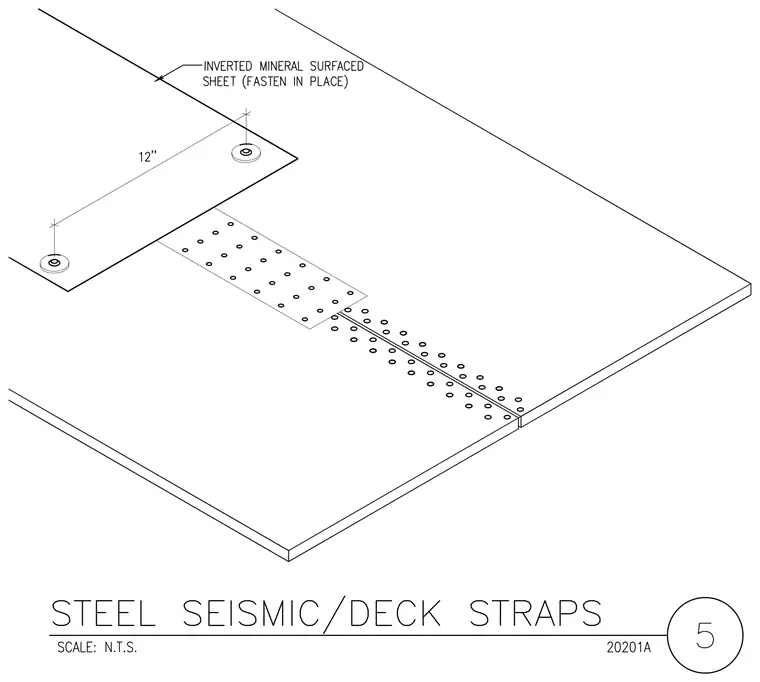

Adjacent steel roof deck panels join together with a perforated structural deck strap mechanically fastened across the longitudinal joint. An inverted mineral surfaced sheet is installed over the deck joint and fastened in place with mechanical plates spaced at twelve inches on center.
