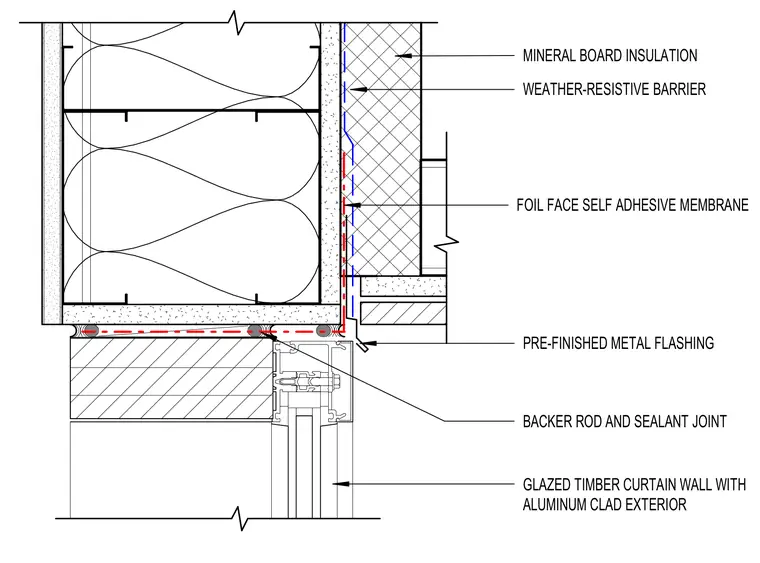

A glazed timber curtain wall with an aluminum clad exterior forms the head condition. A pre-finished metal flashing sits above the curtain wall assembly, integrated with a foil-faced self-adhesive membrane and a weather-resistive barrier behind mineral board insulation. A backer rod and sealant joint seal the interface between the structural head and the curtain wall framing.
MINERAL BOARD INSULATION WEATHER-RESISTIVE BARRIER FOIL FACE SELF ADHESIVE MEMBRANE BACKER ROD AND SEALANT JOINT GLAZED TIMBER CURTAIN WALL WITH ALUMINUM CLAD EXTERIOR PRE-FINISHED METAL FLASHING
