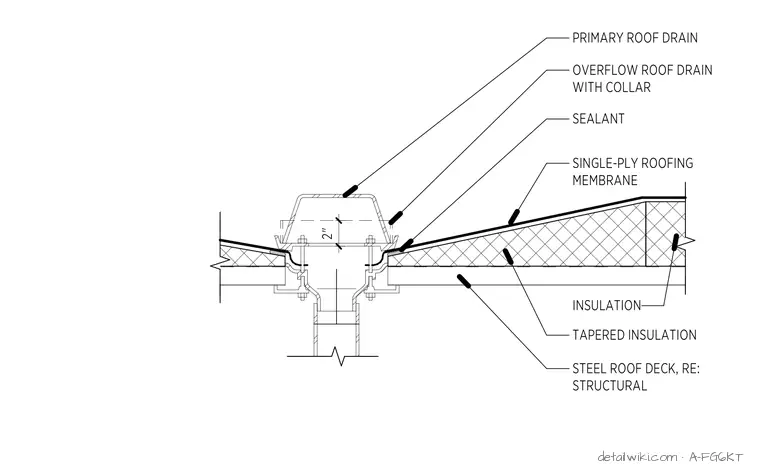

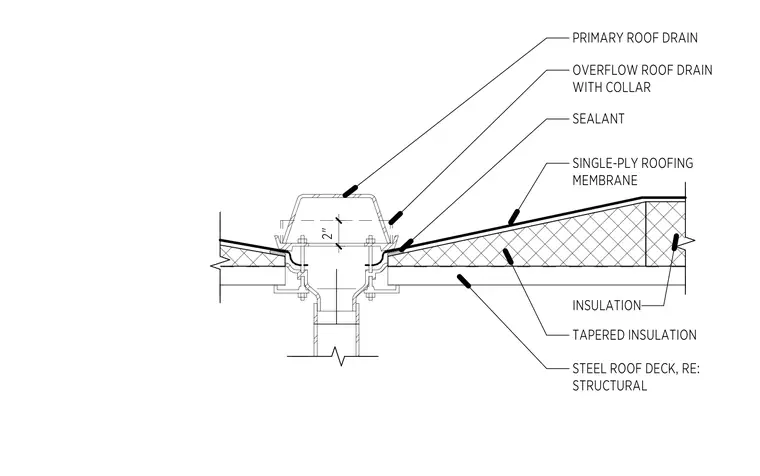

The assembly features a primary roof drain integrated with an overflow roof drain equipped with a collar, set at a two-inch vertical offset. The single-ply roofing membrane is clamped into the drain body and sealed with sealant at the interface. The system is supported by a steel roof deck, with tapered insulation providing the necessary slope toward the drain. The overflow drain collar sits above the primary drain level to manage excess water accumulation.
