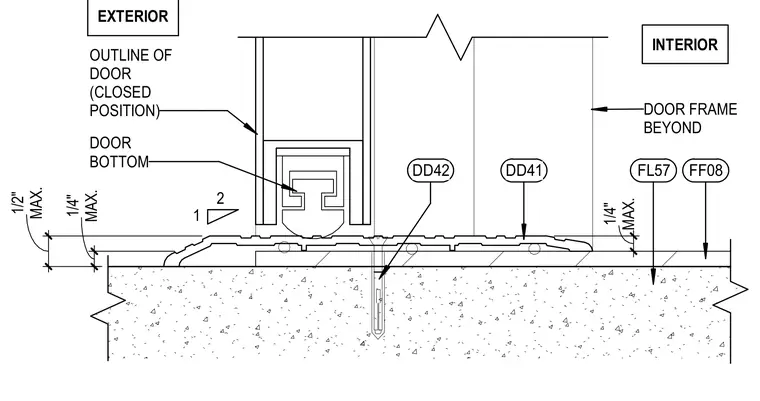

An aluminum or metal door threshold plate is surface-mounted to a concrete slab and secured with anchors. The closed door bottom aligns above the threshold with specified vertical clearances, including a maximum one-half inch overall height and a maximum one-quarter inch step at the interior finish floor. The threshold bridges the transition between exterior and interior conditions, with adjacent flooring materials indicated by finish floor tags.
DOOR FRAME BEYOND EXTERIOR INTERIOR DOOR BOTTOM OUTLINE OF DOOR (CLOSED POSITION) 1 2 DD42 DD41 FL57 FF08 MAX. 1/2" MAX. 1/4" MAX. 1/4"
