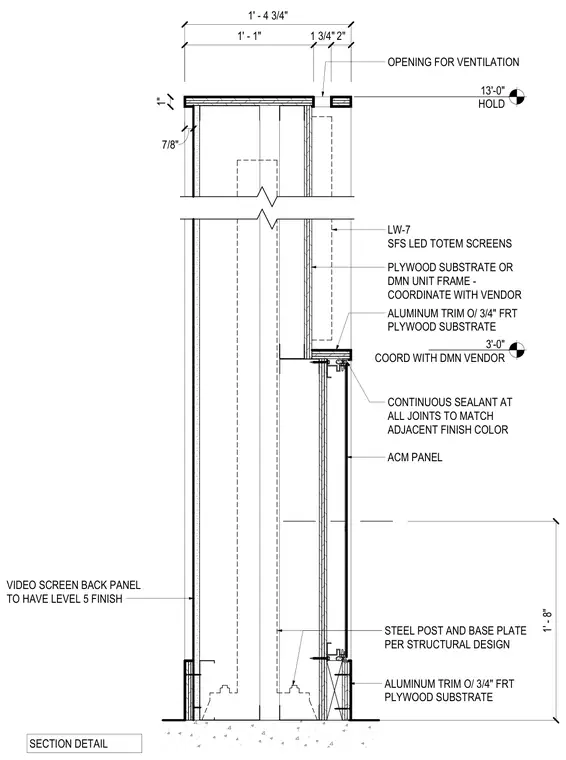

An interior steel post anchored by a base plate supports an LED totem screen assembly and aluminum trim over a three-quarter-inch fire-retardant plywood substrate. The exterior cladding consists of aluminum composite material panels with continuous sealant at all joints to match the adjacent finish color. The video screen back panel is finished to a level five smoothness, and a ventilation opening is coordinated with the digital media vendor.
ACM PANEL 3'-0" COORD WITH DMN VENDOR CONTINUOUS SEALANT AT ALL JOINTS TO MATCH ADJACENT FINISH COLOR ALUMINUM TRIM O/ 3/4" FRT PLYWOOD SUBSTRATE 1' - 1" 1 3/4" 2" 7/8" ALUMINUM TRIM O/ 3/4" FRT PLYWOOD SUBSTRATE STEEL POST AND BASE PLATE PER STRUCTURAL DESIGN 13'-0" HOLD 1" PLYWOOD SUBSTRATE OR DMN UNIT FRAME - COORDINATE WITH VENDOR OPENING FOR VENTILATION LW-7 SFS LED TOTEM SCREENS 1' - 8" VIDEO SCREEN BACK PANEL TO HAVE LEVEL 5 FINISH 1' - 4 3/4" SECTION DETAIL
