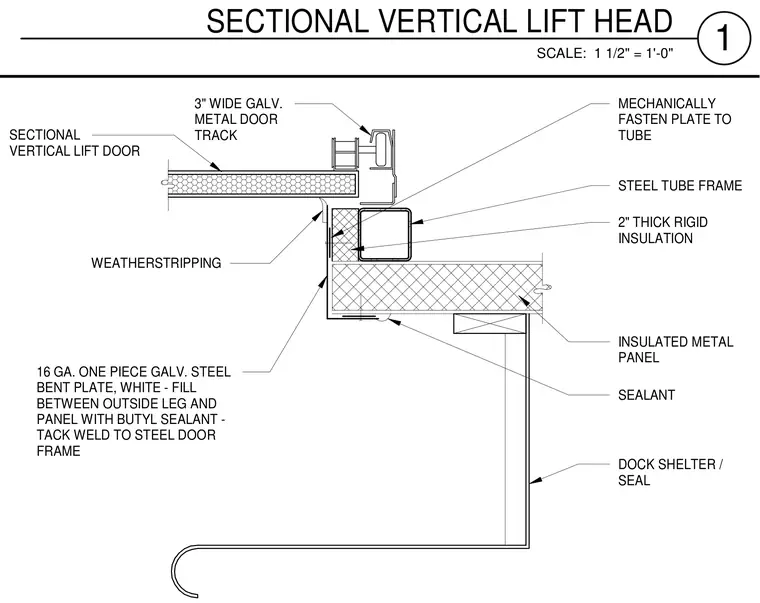

A sixteen-gauge one-piece galvanized steel bent plate in white is tack welded to the steel door frame, with butyl sealant filling the space between the outside leg and the insulated metal panel. The three-inch wide galvanized metal door track supports the two-inch thick rigid insulation and the sectional vertical lift door panel. A steel tube frame receives mechanical fasteners and interfaces with the insulated metal panel assembly and dock shelter seal. Weatherstripping seals the head condition at the door track.
INSULATED METAL PANEL DOCK SHELTER / SEAL 16 GA. ONE PIECE GALV. STEEL BENT PLATE, WHITE - FILL BETWEEN OUTSIDE LEG AND PANEL WITH BUTYL SEALANT - TACK WELD TO STEEL DOOR FRAME SECTIONAL VERTICAL LIFT DOOR 3" WIDE GALV. METAL DOOR TRACK 2" THICK RIGID INSULATION MECHANICALLY FASTEN PLATE TO TUBE STEEL TUBE FRAME SEALANT WEATHERSTRIPPING SCALE: 1 1/2" = 1'-0" 1 SECTIONAL VERTICAL LIFT HEAD
