Architectural · A-FFT93

High Counter Section at Nurse Station

Materials

Steel Timber / Wood

Elements

Columns Walls Floors / Slabs Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Welded Connection

About this detail

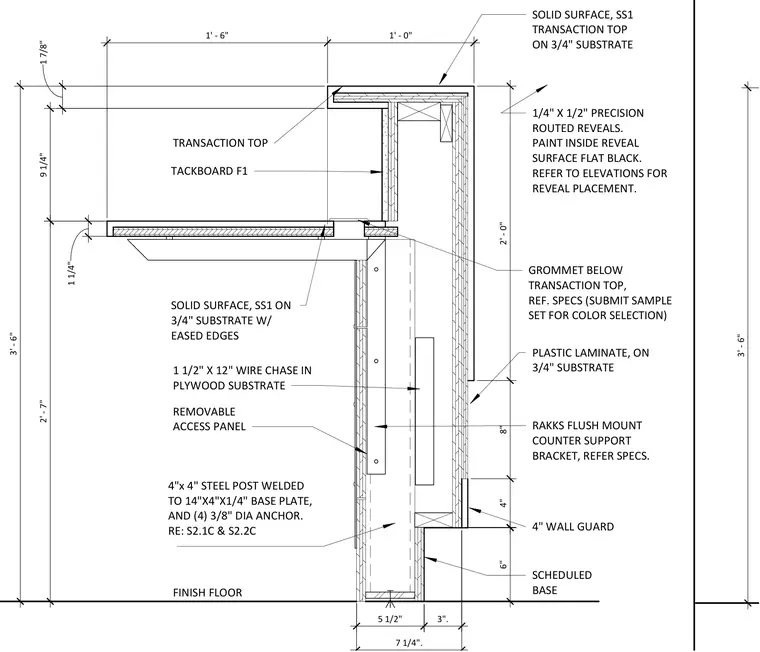

This high nurse station counter assembly is built around a structural steel post framing system consisting of a four-inch by four-inch steel post welded to a fourteen-inch by four-inch by one-quarter-inch base plate anchored with four three-eighths-inch diameter anchors. The upper transaction surface features solid surface material, SS1, over a three-quarters-inch substrate with precision-routed black-painted reveals and an integrated wire chase in the plywood substrate. A lower work surface incorporates a solid surface finish over a three-quarters-inch substrate with eased edges, supported by Rakks flush-mount counter support brackets. The front of the counter incorporates plastic laminate over a three-quarters-inch substrate, a tackboard, a removable access panel, and a four-inch wall guard.
