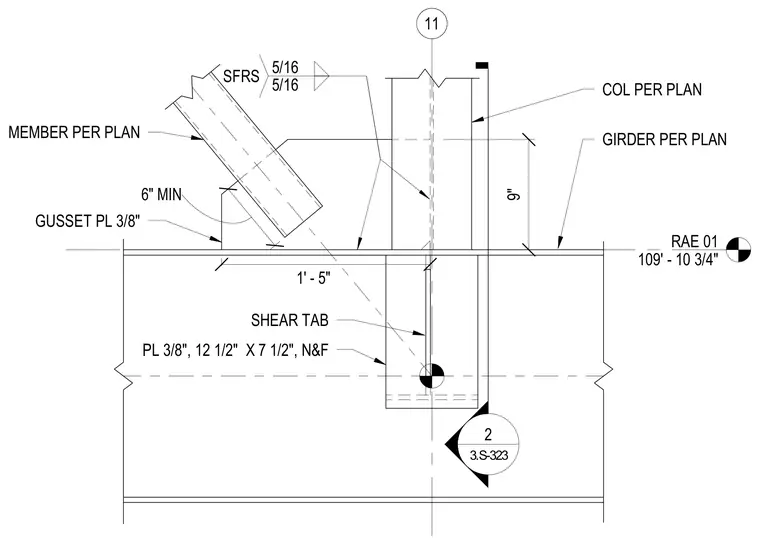

A structural steel connection joins a special-force-resisting-system member to a column and girder using a 3/8-inch thick gusset plate and a 3/8-inch by 12-1/2-inch by 7-1/2-inch shear tab. The diagonal member connects via the gusset plate with 5/16-inch welds. A shear tab is welded near the column centerline with a minimum 6-inch clearance. The structural members are sized per plan and detailed with standard connection plates.
RAE 01 109' - 10 3/4" 11 5/16 5/16 SFRS MEMBER PER PLAN COL PER PLAN GUSSET PL 3/8" 9" 1' - 5" GIRDER PER PLAN 2 3.S-323 PL 3/8", 12 1/2" X 7 1/2", N&F SHEAR TAB 6" MIN
