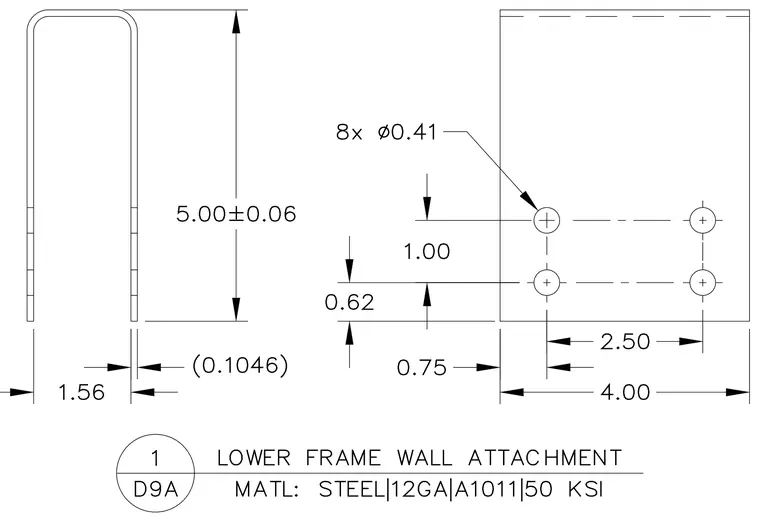

The lower frame wall attachment consists of a formed steel bracket fabricated from 12 gauge A1011 50 ksi steel with a material thickness of 0.1046 inches. The component has an overall height of 5.00 inches, a width of 4.00 inches, and a depth dimension of 1.56 inches. Fastener connection is provided by eight 0.41 inch diameter holes arranged with specific edge distances and center-to-center spacings, including a 1.00 inch vertical spacing, a 0.62 inch lower offset, a 0.75 inch side edge distance, and a 2.50 inch horizontal spacing.
4.00 2.50 (0.1046) 5.00±0.06 1.00 1.56 0.62 0.75 8x ∅0.41 LOWER FRAME WALL ATTACHMENT 1 D9A MATL: STEEL|12GA|A1011|50 KSI 9 —
