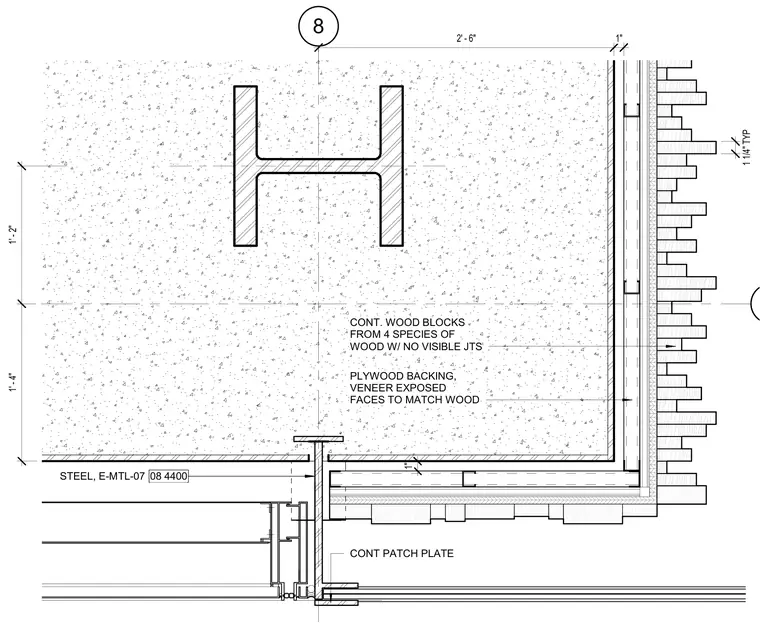

Continuous wood blocks from four species of wood with no visible joints are installed over a plywood backing with veneer exposed faces to match the wood, forming an exterior wall termination. A continuous patch plate is specified alongside steel material E-MTL-07. Dimensions indicate a 1-1/4 inch typical spacing for the wood elements and specific offset distances from the embedded steel column.
8 CONT PATCH PLATE 08 4400 STEEL, E-MTL-07 PLYWOOD BACKING, VENEER EXPOSED FACES TO MATCH WOOD CONT. WOOD BLOCKS FROM 4 SPECIES OF WOOD W/ NO VISIBLE JTS 1" 1 1/4" TYP 1' - 4" 1' - 2" 2' - 6" 1"
