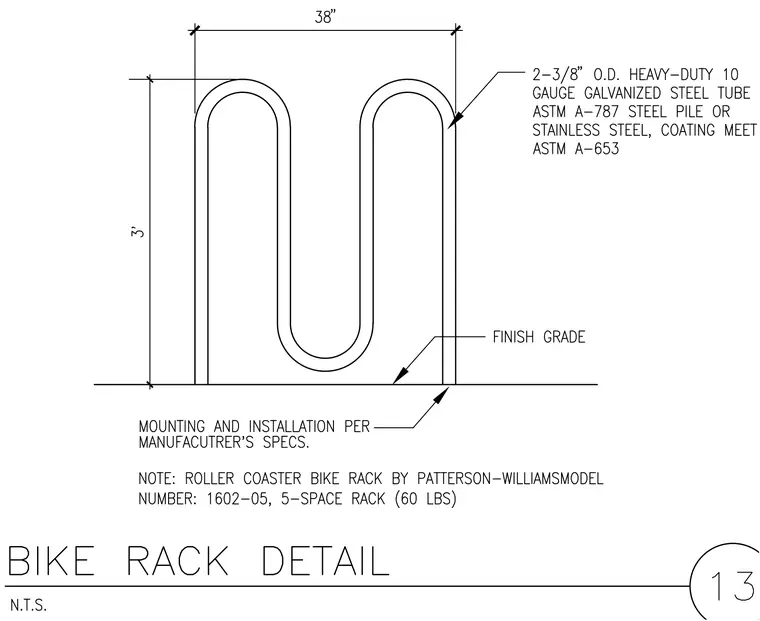

A five-space roller coaster bike rack is fabricated from two and three-eighths inch outside diameter heavy-duty ten gauge galvanized steel tubing conforming to ASTM A-787 steel pile or stainless steel with coatings meeting ASTM A-653. The overall assembly measures thirty-eight inches wide by three feet high above the finish grade. Mounting and installation follow the manufacturer's specifications for model 1602-05 weighing sixty pounds.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
