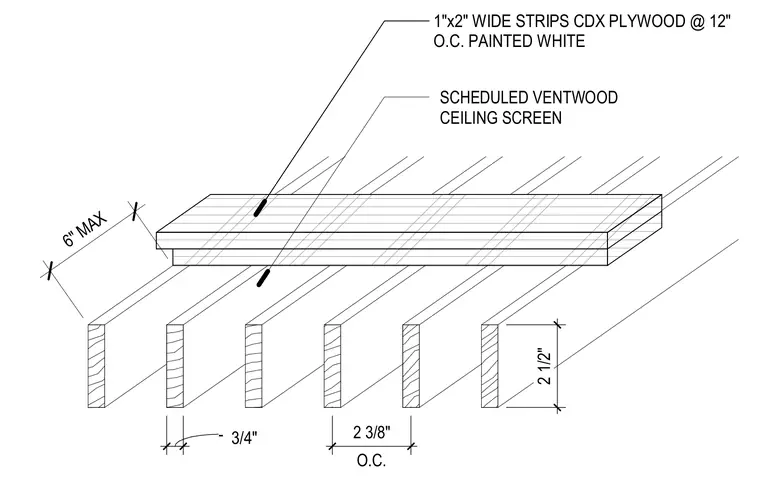

This interior ceiling assembly features a scheduled Ventwood ceiling screen with vertical wood slats spaced two and three-eighths inches on center. The individual slats measure two and one-half inches in height and three-quarters of an inch in thickness. Above the vertical slats, one-inch by two-inch wide CDX plywood strips are spaced twelve inches on center and painted white. The overall depth of the slatted ceiling screen profile is dimensioned at a maximum of six inches.
O.C. 2 3/8" - 2 1/2" 3/4" 1"x2" WIDE STRIPS CDX PLYWOOD @ 12" O.C. PAINTED WHITE 6" MAX SCHEDULED VENTWOOD CEILING SCREEN
