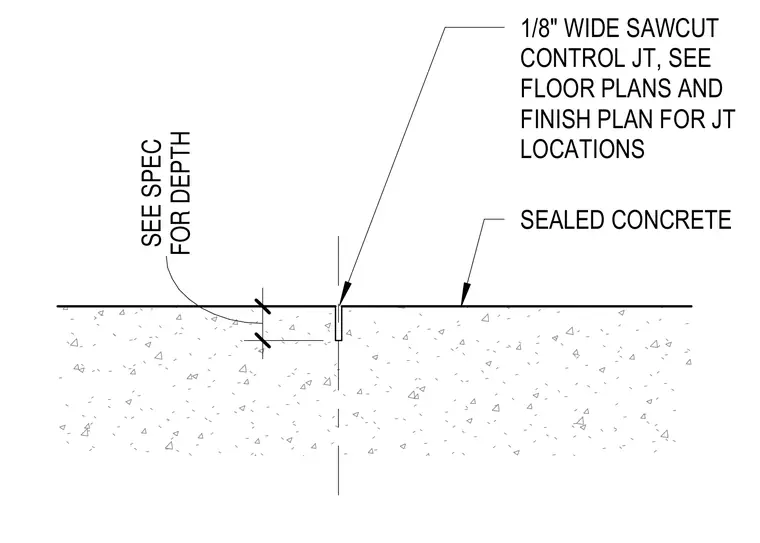

A sealed concrete sawcut control joint in a concrete slab. The joint features a one-eighth-inch-wide sawcut with depth specified per project specifications. Joint locations are coordinated per the floor plans and finish plan.
SEALED CONCRETE 1/8" WIDE SAWCUT CONTROL JT, SEE FLOOR PLANS AND FINISH PLAN FOR JT LOCATIONS SEE SPEC FOR DEPTH
