A one-and-one-quarter-inch steel pipe post stands at a total height of three feet six inches above the landing. The post bolts directly to the web of an MC12 by 10.6 steel channel landing stringer. A two-by-two-by-three-eighths-inch structural angle provides typical support at the landing connection. The entire assembly receives a hot-dip galvanized finish after fabrication.

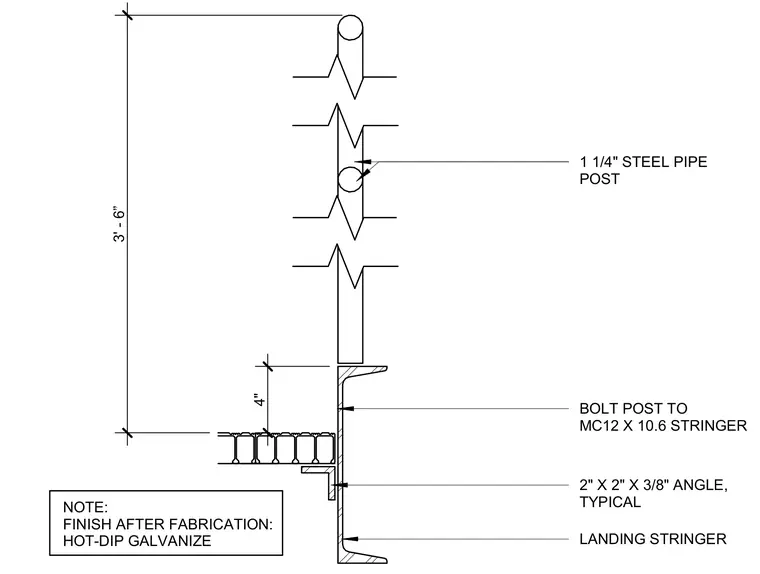

BOLT POST TO MC12 X 10.6 STRINGER 3' - 6” 1 1/4" STEEL PIPE POST 2" X 2" X 3/8" ANGLE, TYPICAL LANDING STRINGER NOTE: FINISH AFTER FABRICATION: HOT-DIP GALVANIZE 4"
