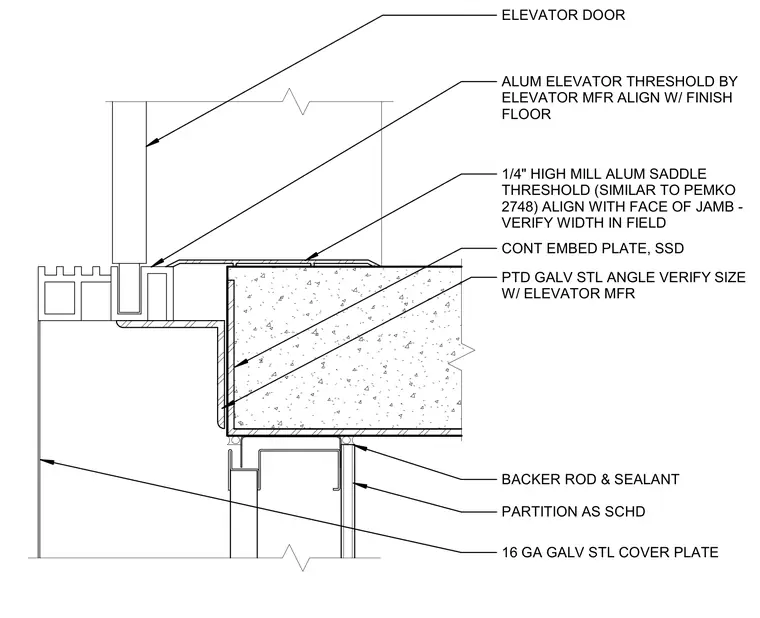

The elevator door threshold aligns with the finished floor elevation, featuring a one-quarter-inch high mill aluminum saddle threshold similar to Pemko 2748 aligned with the face of the jamb. A continuous embed plate and a painted galvanized steel angle secure the assembly to the concrete slab, with sizes verified against the elevator manufacturer requirements. Below the slab edge, backer rod and sealant seal the partition junction, which is finished with a sixteen gauge galvanized steel cover plate.
ELEVATOR DOOR ALUM ELEVATOR THRESHOLD BY ELEVATOR MFR ALIGN W/ FINISH FLOOR 1/4" HIGH MILL ALUM SADDLE THRESHOLD (SIMILAR TO PEMKO 2748) ALIGN WITH FACE OF JAMB - VERIFY WIDTH IN FIELD CONT EMBED PLATE, SSD PTD GALV STL ANGLE VERIFY SIZE W/ ELEVATOR MFR BACKER ROD & SEALANT PARTITION AS SCHD 16 GA GALV STL COVER PLATE
