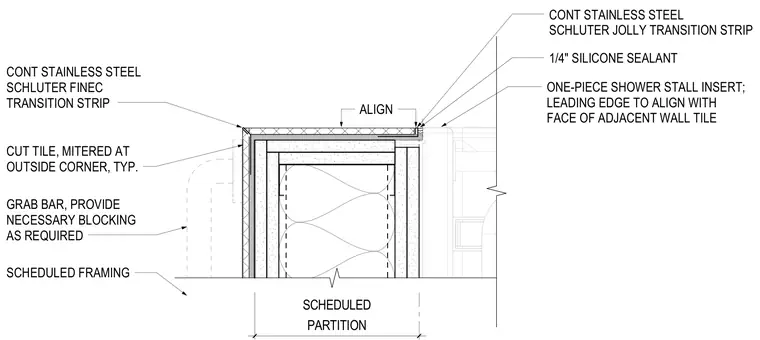

A scheduled partition is finished with wall tile meeting a continuous stainless steel Schluter Finec transition strip at the mitered outside corner. The adjacent side receives a continuous stainless steel Schluter Jolly transition strip and a one-piece shower stall insert, aligning its leading edge with the face of the wall tile with a one-quarter inch silicone sealant joint. Scheduled framing supports the assembly, with necessary blocking provided as required for a grab bar.
ALIGN CONT STAINLESS STEEL SCHLUTER FINEC TRANSITION STRIP CUT TILE, MITERED AT OUTSIDE CORNER, TYP. ONE-PIECE SHOWER STALL INSERT; LEADING EDGE TO ALIGN WITH FACE OF ADJACENT WALL TILE 1/4" SILICONE SEALANT GRAB BAR, PROVIDE NECESSARY BLOCKING AS REQUIRED CONT STAINLESS STEEL SCHLUTER JOLLY TRANSITION STRIP PARTITION SCHEDULED SCHEDULED FRAMING
