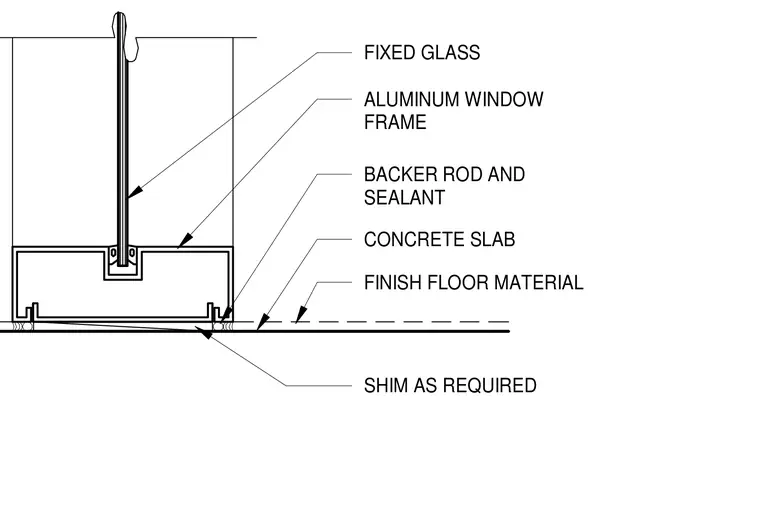

An aluminum window frame rests directly on a concrete slab and is leveled with shims as required. A backer rod and sealant seal the joint between the frame and the adjacent finish floor material. Fixed glass is secured within the aluminum frame.
FIXED GLASS ALUMINUM WINDOW FRAME BACKER ROD AND SEALANT CONCRETE SLAB FINISH FLOOR MATERIAL SHIM AS REQUIRED
