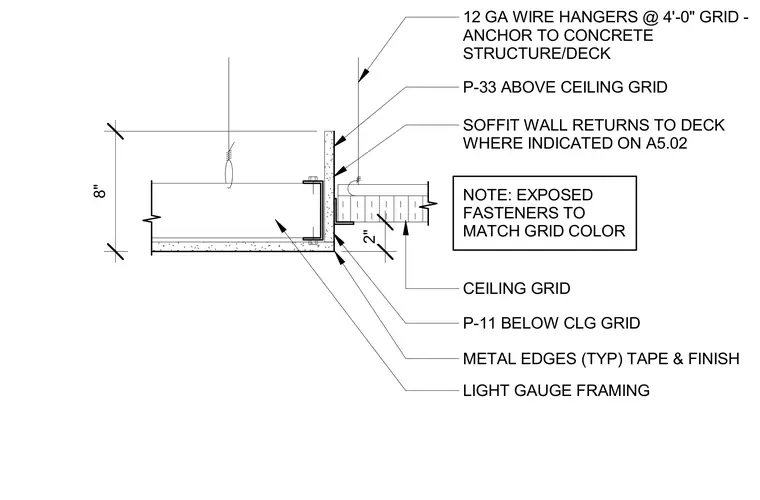

Twelve-gauge wire hangers spaced at a four-foot grid anchor the ceiling assembly to the concrete structure or deck above. The light-gauge metal framing supports a taped and finished soffit return that meets the deck where indicated. A suspended ceiling grid integrates with metal edges, requiring exposed fasteners to match the grid color.
8" 12 GA WIRE HANGERS @ 4'-0" GRID - ANCHOR TO CONCRETE STRUCTURE/DECK P-33 ABOVE CEILING GRID SOFFIT WALL RETURNS TO DECK WHERE INDICATED ON A5.02 CEILING GRID P-11 BELOW CLG GRID METAL EDGES (TYP) TAPE & FINISH LIGHT GAUGE FRAMING 2" NOTE: EXPOSED FASTENERS TO MATCH GRID COLOR
