An Amarco ATF-250L aluminum frame is fastened with masonry anchors to support an Amarco ATA-250 aluminum tread with bristle filament carpet insert and continuous vinyl cushion. Vinyl nosing is provided as required by the factory for sizing tile and bed. Surrounding tile and bed materials are detailed per specifications.

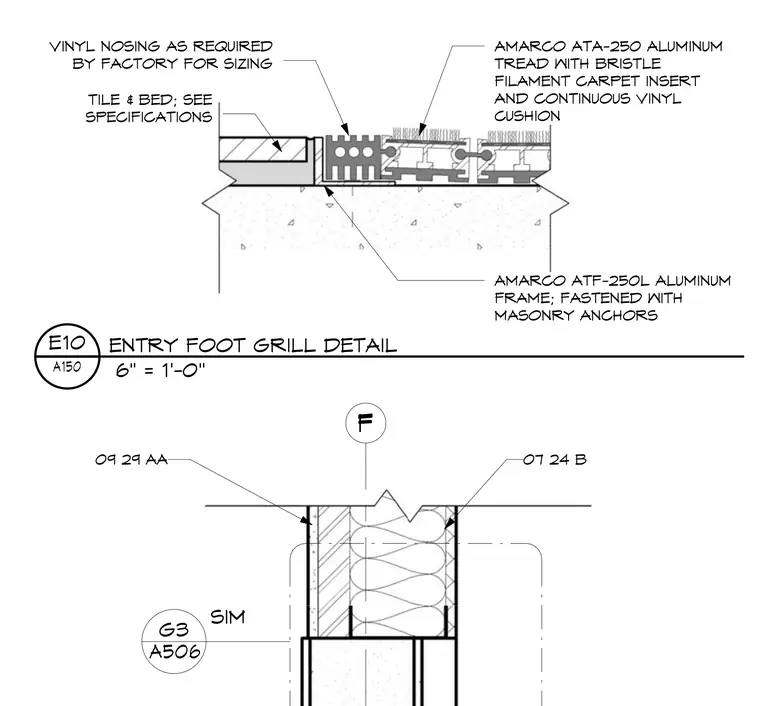

F A506 G3 SIM 09 29 AA 07 24 B VINYL NOSING AS REQUIRED BY FACTORY FOR SIZING TILE & BED; SEE SPECIFICATIONS AMARCO ATA-250 ALUMINUM TREAD WITH BRISTLE FILAMENT CARPET INSERT AND CONTINUOUS VINYL CUSHION AMARCO ATF-250L ALUMINUM FRAME; FASTENED WITH MASONRY ANCHORS 6" = 1'-0" A150 E10 ENTRY FOOT GRILL DETAIL
